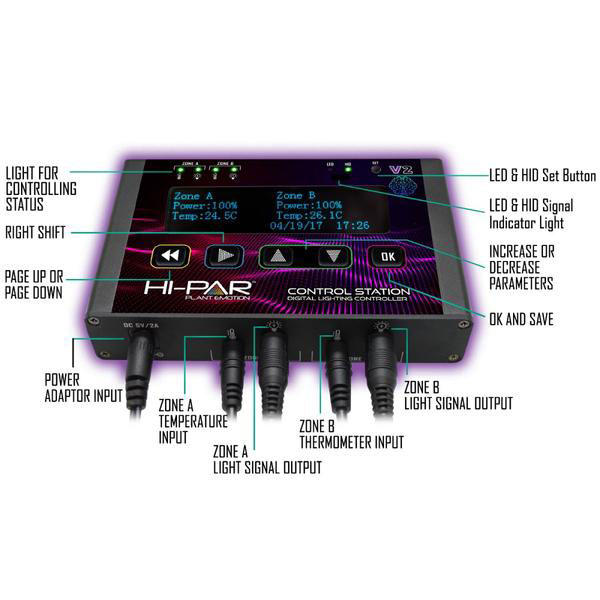

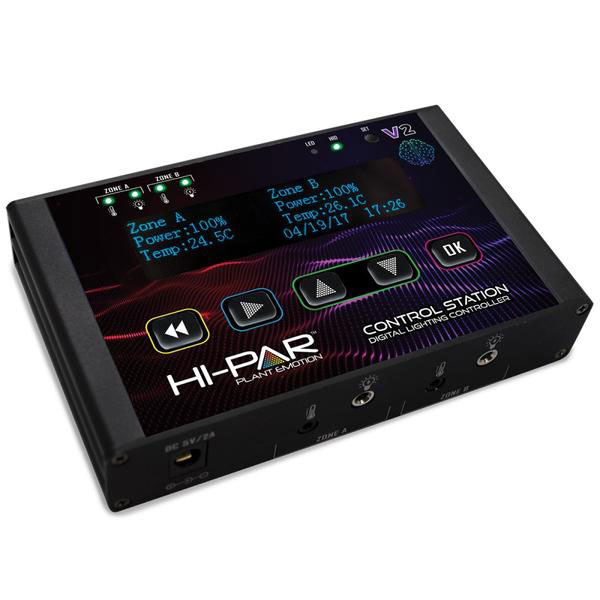

HI-PAR DIGITAL LIGHTING CONTROL STATION V2 – Smart Multi-Fixture Automation Hub
The HI-PAR Control Station V2 is a next-gen lighting automation system designed to manage both LED and HID (HPS/CMH) fixtures simultaneously. With precision dimming, temperature monitoring, and programmable sunrise/sunset cycles, this controller empowers growers to fine-tune their lighting environment across two zones and up to 400 fixtures. Plug-and-play simplicity meets commercial-grade scalability.
Smart Features
- Digital timing, automation, and safety control
- Smart room temperature maintenance via thermo sensors
- Automatic sunrise/sunset simulation (0–30 min)
- Digital dimming in 1% increments (60%–110%)

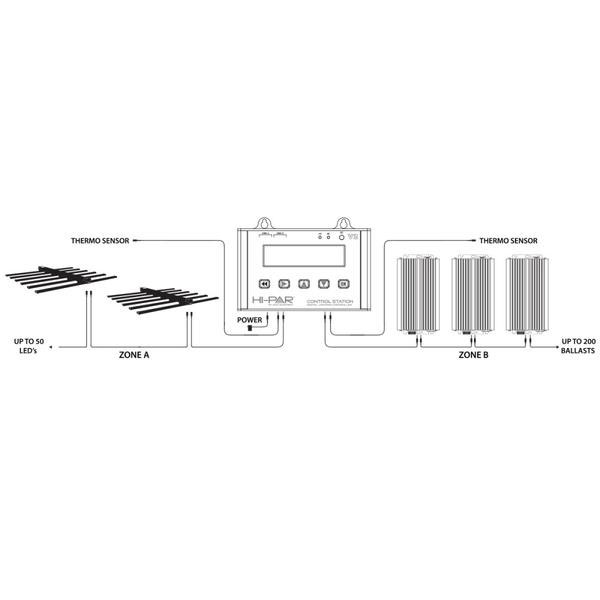

- Control up to 400 ballasts across 2 zones (Zone A & B)
- Compatible with HI-PAR LED and HID ballasts
- TRS “Link” port for daisy-chaining controllable ballasts
- Plug-and-play setup with included cables
Technical Specifications
| Metric | Value |
|---|---|
| Power Input | DC 5V / 2A |
| Control Channels | 2 (Zone A & Zone B) |
| Supported Ballasts | 250W, 315W, 400W, 600W, 630W, 750W, 1000W |
| Command Interval | 2 seconds |
| Dimming Range | 60% – 110% |
| Dimming Accuracy | ±1% |
| Temperature Adjustment Range | 0°C – 40°C |
| Temperature Protection Range | 10°C – 50°C |
| Sunrise/Sunset Duration | 0 – 30 minutes |
Box Contents
- 1 × HI-PAR Control Station
- 1 × Power cable
- 2 × Thermo Sensor cables
- 2 × TRS Control ‘Link’ cables
