VIVOSUN AeroZesh S4 Kit with E12 Controller
A complete ventilation and odour control kit featuring the AeroZesh S4 inline duct fan, E12 speed controller, premium carbon filter, and durable ducting. Ideal for grow tents and indoor gardens.

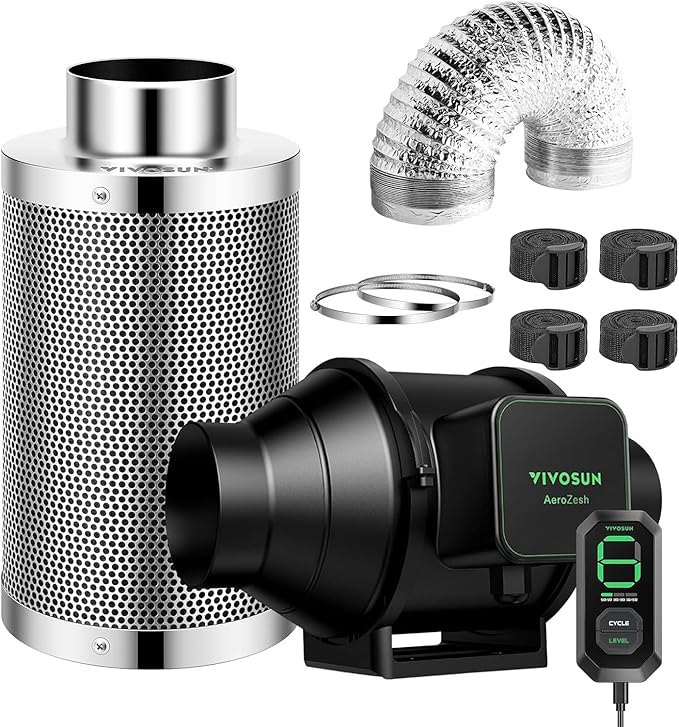

Kit Includes
- 1 × AeroZesh S4 4-inch (100 mm) inline duct fan
- 1 × E12 speed controller
- 1 × 4-inch (100 mm) silver carbon filter
- 1 × 4-inch (100 mm) × 2.44 m silver ducting
- 2 × stainless steel clamps
- 4 × rope hangers
Fan Features
- Quiet operation at 39 dBA
- Up to 208 CFM (353 m³/h) airflow, adjustable

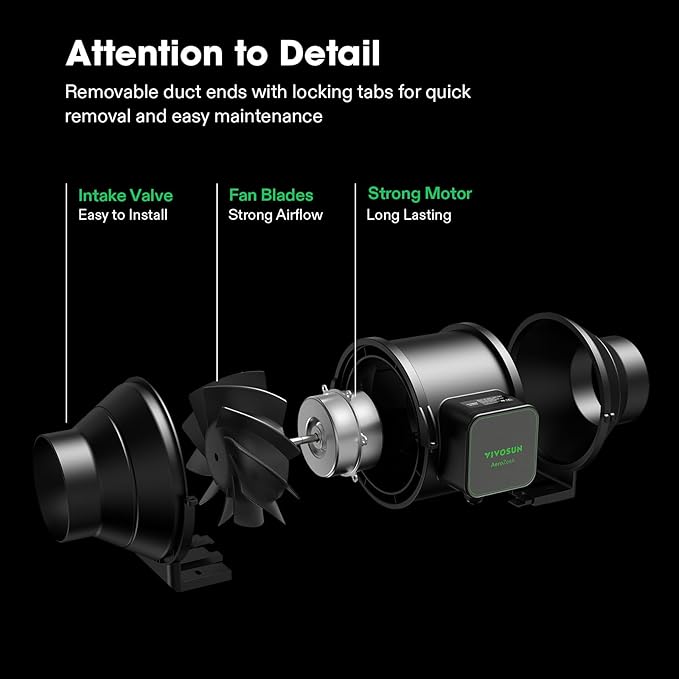

- PWM-controlled EC motor with mixed-flow design
E12 Controller

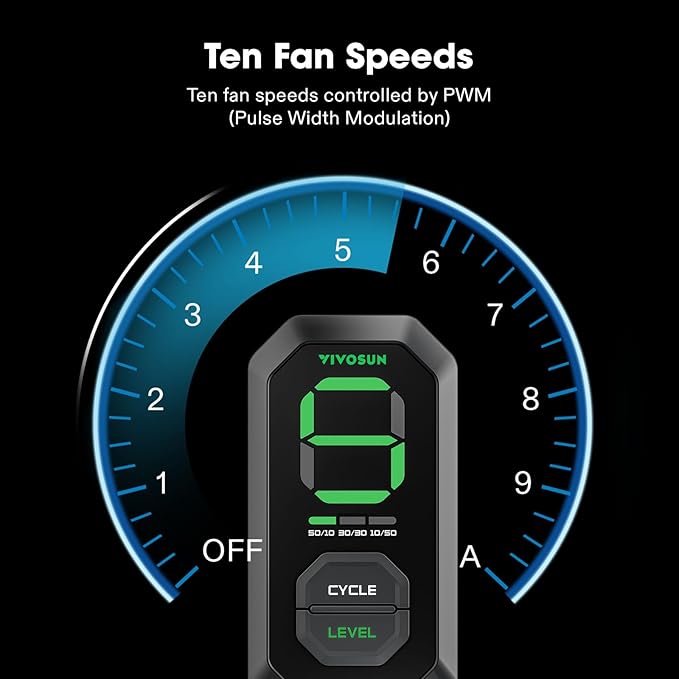

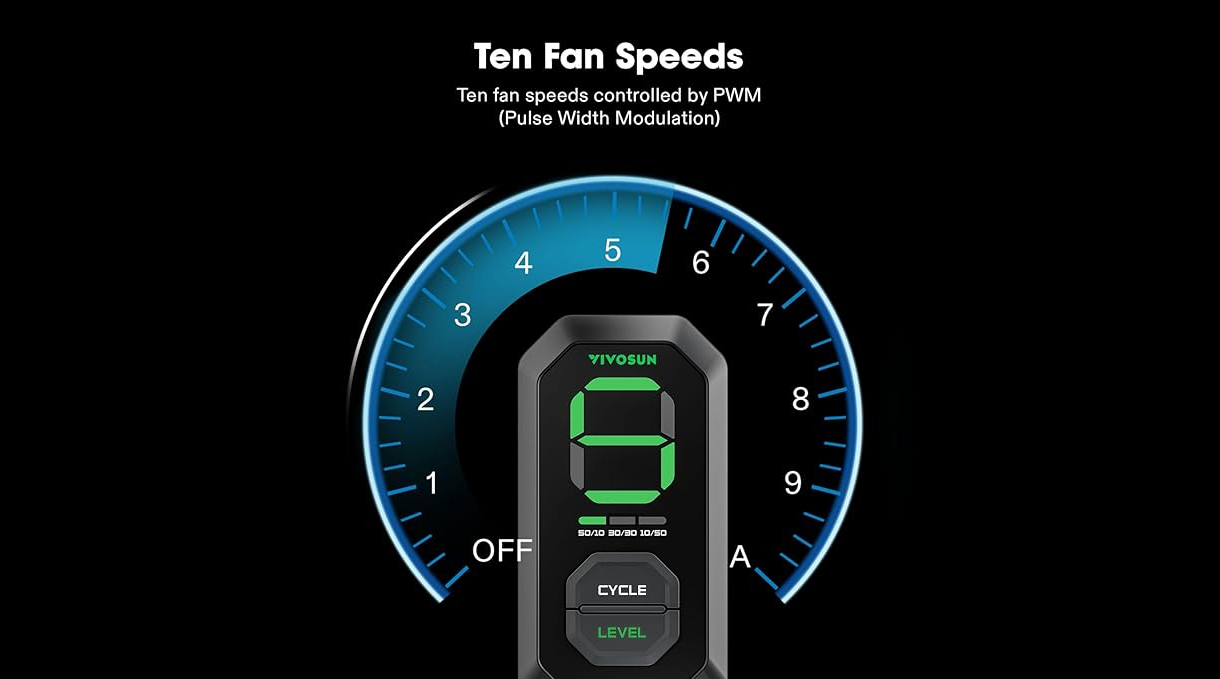

- 10 fan speed settings via PWM
- Backup memory retains settings after power loss
- 3 on/off timing modes for automated cycles
- Wired controller, upgradable to the GrowHub E42A multi-device controller for intelligent remote automation through the VIVOSUN App

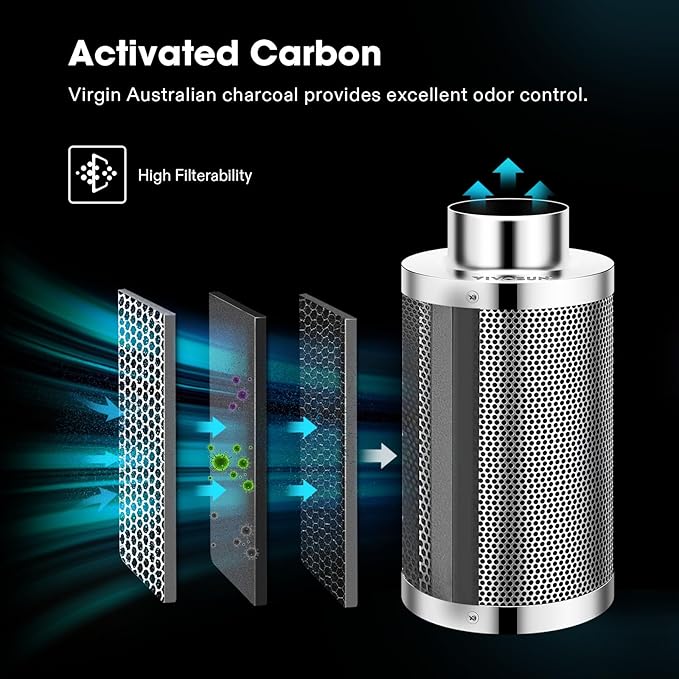

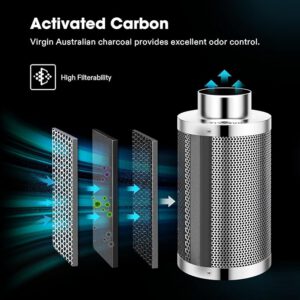

Odour Control
- RC 412 Australian virgin charcoal with a 1200+ IAV rating
- 38 mm thick charcoal bed with high microporosity
- Includes 4 rope hangers for easy mounting

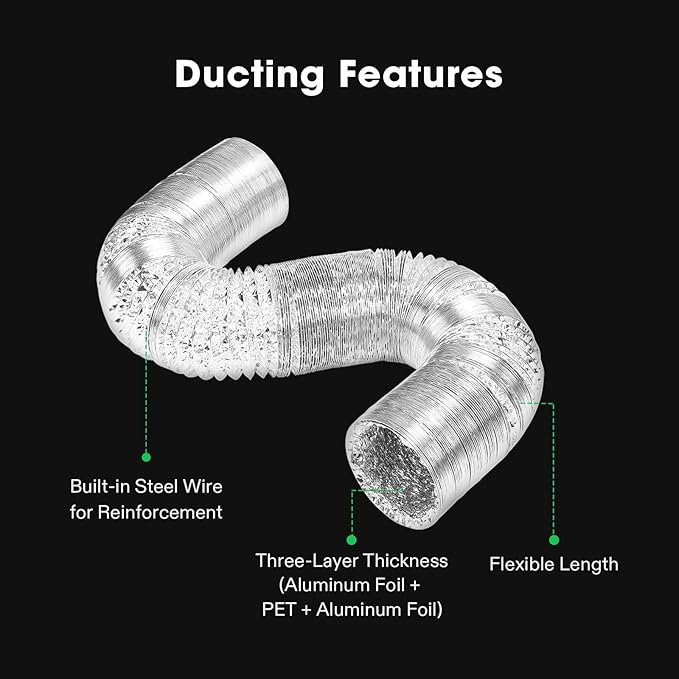

Ducting
- Aluminium with PET thermoplastic core
- Flexible, durable, and leak-resistant
- Includes 2 stainless steel clamps
Key Features
- AeroZesh S4 fan with PWM-controlled EC motor and mixed-flow design
- Up to 208 CFM (353 m³/h) with adjustable speed
- Quiet operation at 39 dBA
- E12 controller with 10 speed settings, memory backup, and 3 on/off timing modes
- Upgrade to the GrowHub E42A for app control and remote automation
- RC 412 carbon filter with a 1200+ IAV rating
- Complete kit: fan, controller, carbon filter, ducting, 2 clamps, and 4 rope hangers
- 1-year limited warranty
Application Guide
Designed for grow tents and indoor gardens. Connect the carbon filter to the fan inlet with the ducting and clamps, and hang the filter using the included rope hangers. Set the fan speed and on/off cycles with the E12 controller. For remote control through the VIVOSUN App, upgrade to the GrowHub E42A.

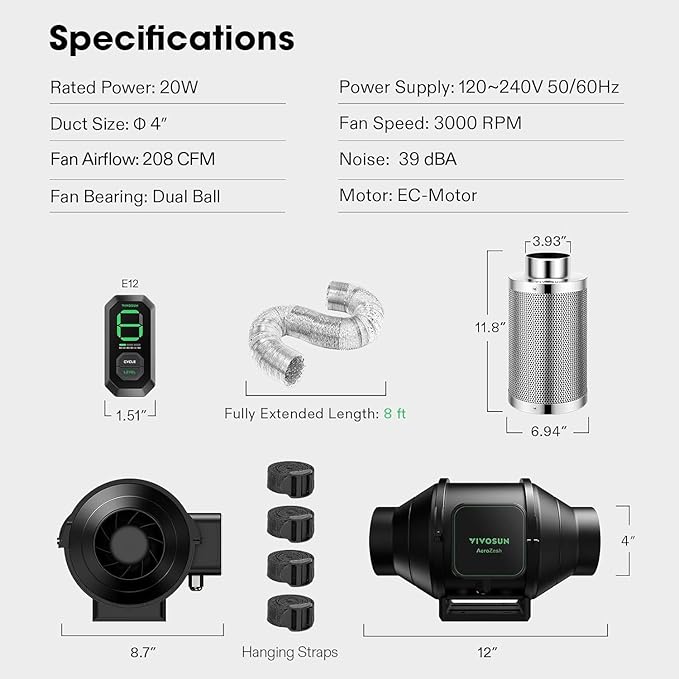

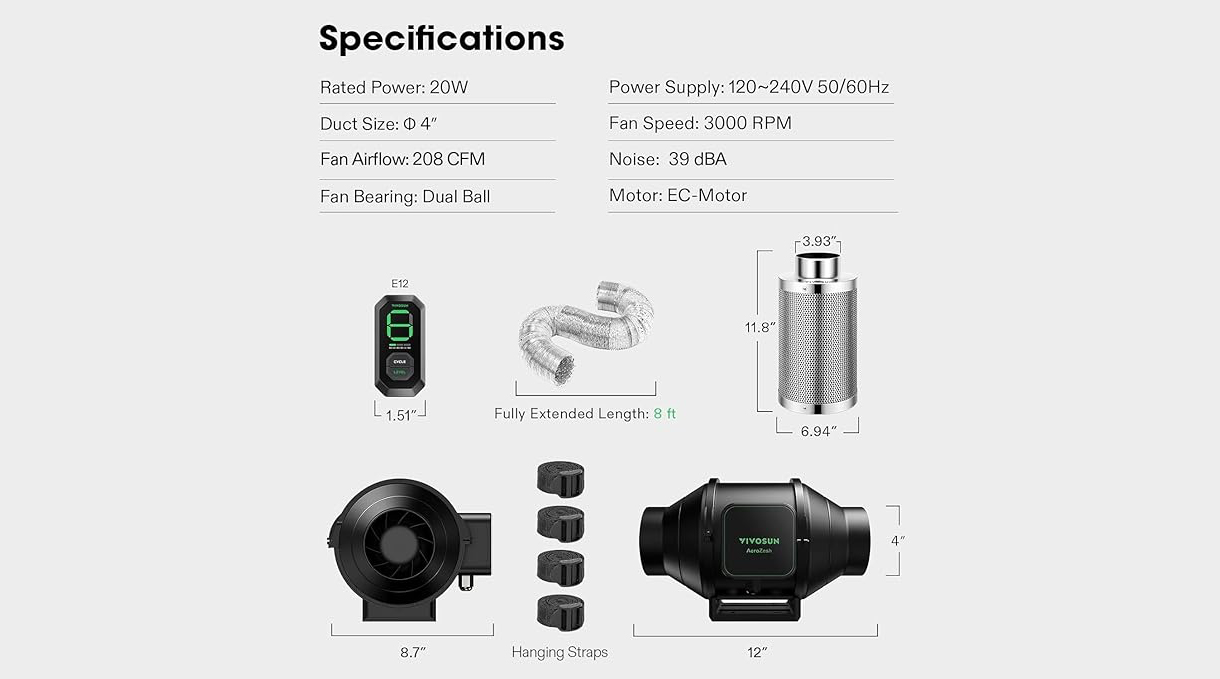

Technical Specifications
| Specification | Details |
| SKU | SG-S1883 |
| Brand | VIVOSUN |
| Product Name | VIVOSUN AeroZesh S4 Kit with E12 Controller |
| Model | AeroZesh S4 (VSVC-AZS4) |
| Duct Size | 4-inch (100 mm) |
| Maximum Airflow | 353 m³/h (208 CFM) |
| Fan Speed | Up to 3000 RPM |
| Noise Level | 39 dBA |
| Motor | PWM-controlled EC motor, mixed-flow design |
| Power | 20 W |
| Input Voltage | 110–240V, 50/60 Hz |
| IP Rating | IP44 |
| Fan Dimensions | 29.5 × 20.3 × 17 cm |
| Fan Power Cord Length | 1.8 m |
| Controller | E12 wired speed controller |
| Cord Length to Controller | 3 m |
| App Control | Upgrade to GrowHub E42A |
| Carbon Filter | RC 412, 1200+ IAV |
| Carbon Filter Material | Aluminium |
| Carbon Filter Dimensions | 30 × 17.5 × 17.5 cm |
| Ducting | 4-inch (100 mm) × 2.44 m, silver |
| Clamps | 2 × stainless steel |
| Rope Hangers | 4 |
| Warranty | 1-year limited warranty |
