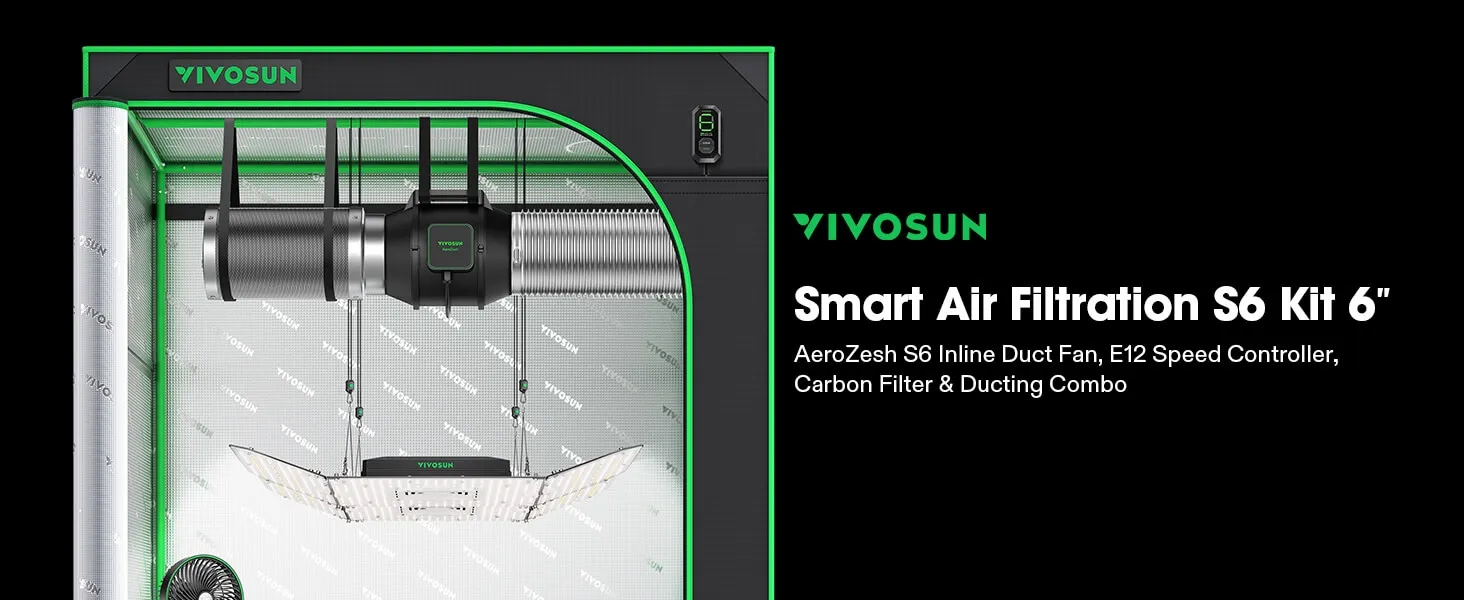

VIVOSUN AeroZesh S6 Kit with E12 Controller
A complete 6-inch ventilation and odour control kit featuring the AeroZesh S6 inline duct fan, E12 speed controller, carbon filter, and ducting. Ideal for grow tents, indoor gardening, and hydroponics.

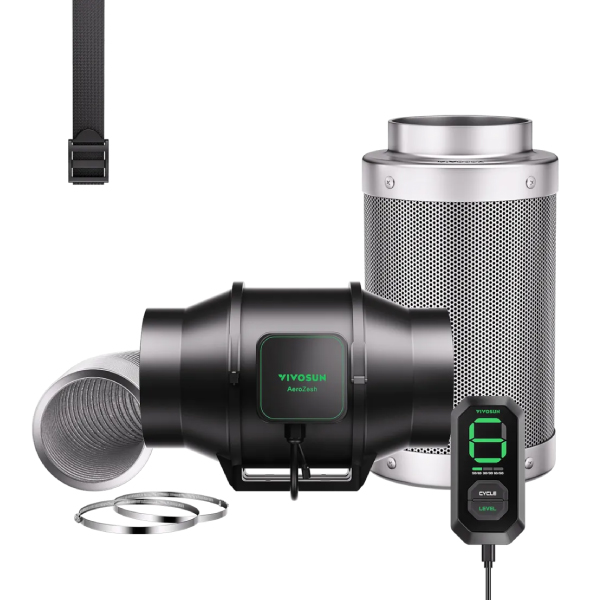

Kit Includes:
- 1 × AeroZesh S6 6-inch (150 mm) inline duct fan
- 1 × E12 speed controller
- 1 × 6-inch (150 mm) carbon filter
- 1 × 6-inch (150 mm) × 2.44 m ducting
- 2 × stainless steel clamps
- 4 × rope hangers
About This Item

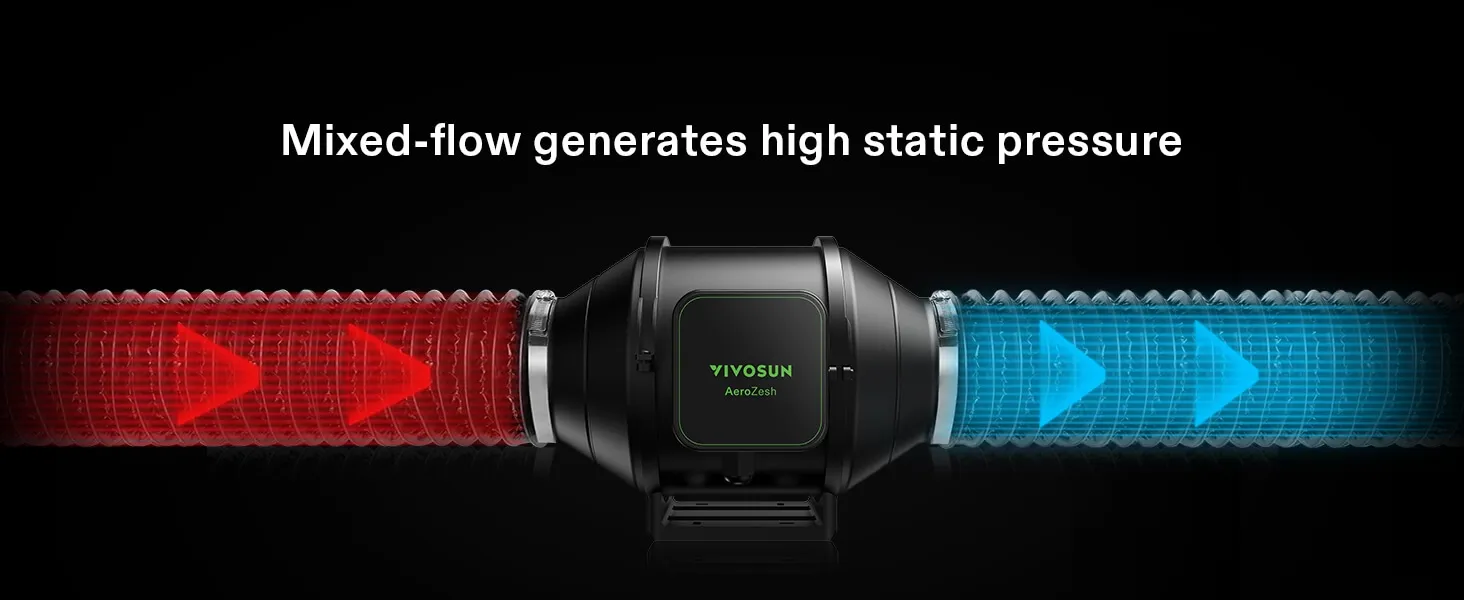

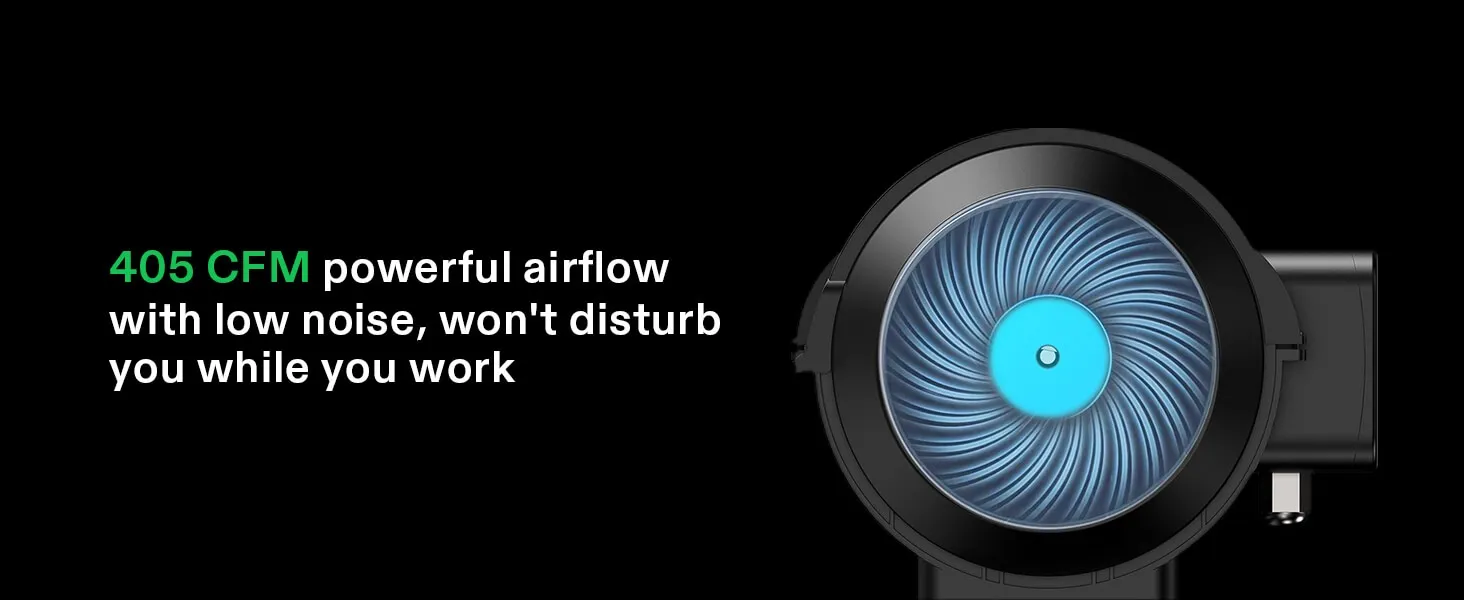

- Efficient Ventilation: Up to 405 CFM (688 m³/h) of airflow moves large volumes of air through your grow space. The PWM-controlled EC fan uses a mixed-flow design and is fully adjustable

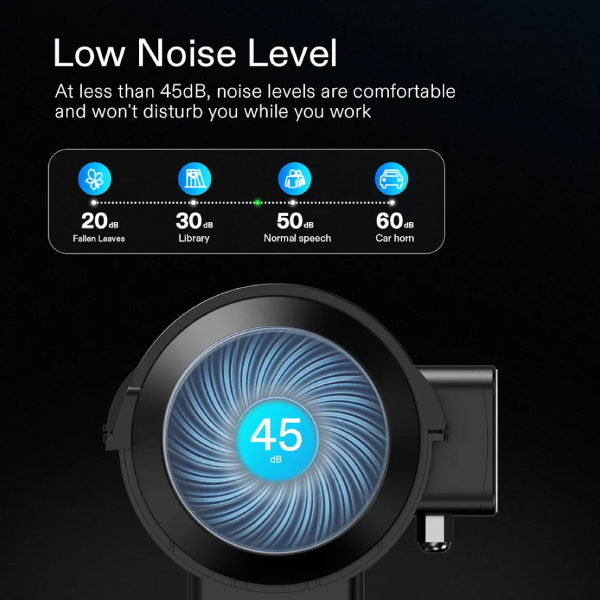

- Quiet Operation: Runs at 45 dBA, helping you balance temperature and humidity with powerful airflow.
- E12 Speed Control: Set the fan speed with the E12 controller, which offers 10 speed settings via PWM, backup memory that retains settings after a power loss, and 3 on/off timing modes for automated cycles.

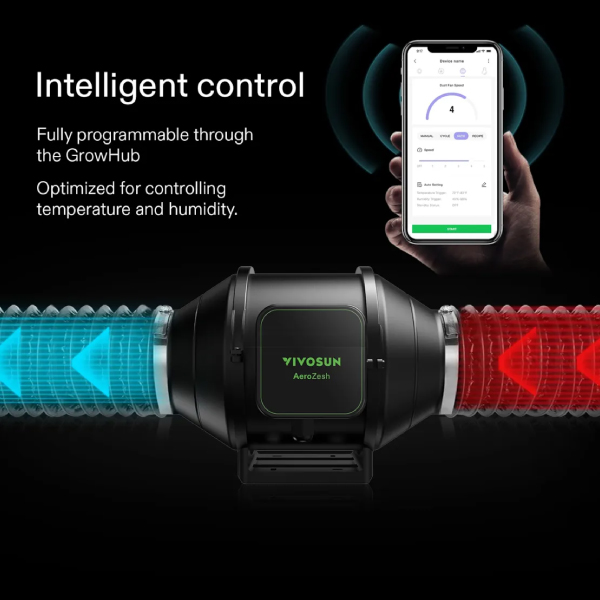

- Upgrade for Smart Control: Upgrade to the GrowHub E42A multi-device controller to program on/off schedules, adjust fan speed to temperature, humidity, or other parameters you define, and control the fan remotely through the VIVOSUN App. Grow Recipes can program the fan for an entire grow.
- Versatile for Indoor Grows: Powerful and adjustable, the AeroZesh S6 suits a range of grow space sizes and sits at the centre of your ventilation system. It comes with a long power cable and mounting plate, or can be hung from support bars, and attaches inline with ducting and filtration.
Key Features
- 405 CFM (688 m³/h) PWM-controlled EC fan with mixed-flow design
- Quiet operation at 45 dBA
- E12 controller with 10 speed settings, memory backup, and 3 on/off timing modes
- Upgrade to the GrowHub E42A for app control, scheduling, and Grow Recipes
- 6-inch carbon filter with a 1200+ IAV rating
- Complete kit: fan, controller, carbon filter, ducting, 2 clamps, and 4 rope hangers
- 1-year limited warranty
Application Guide

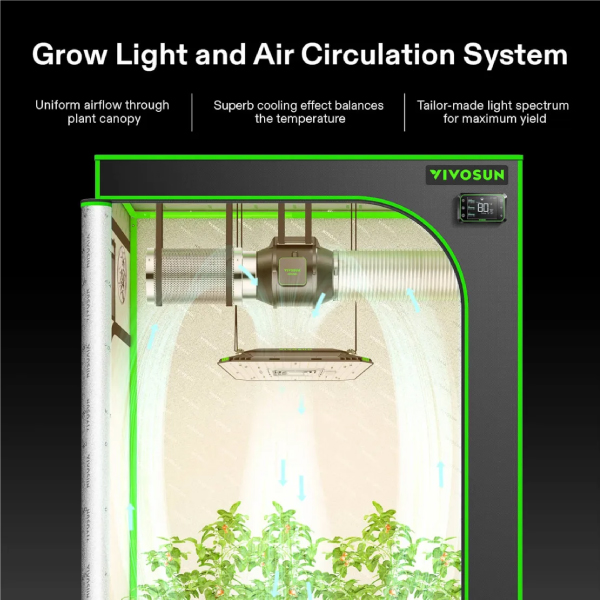

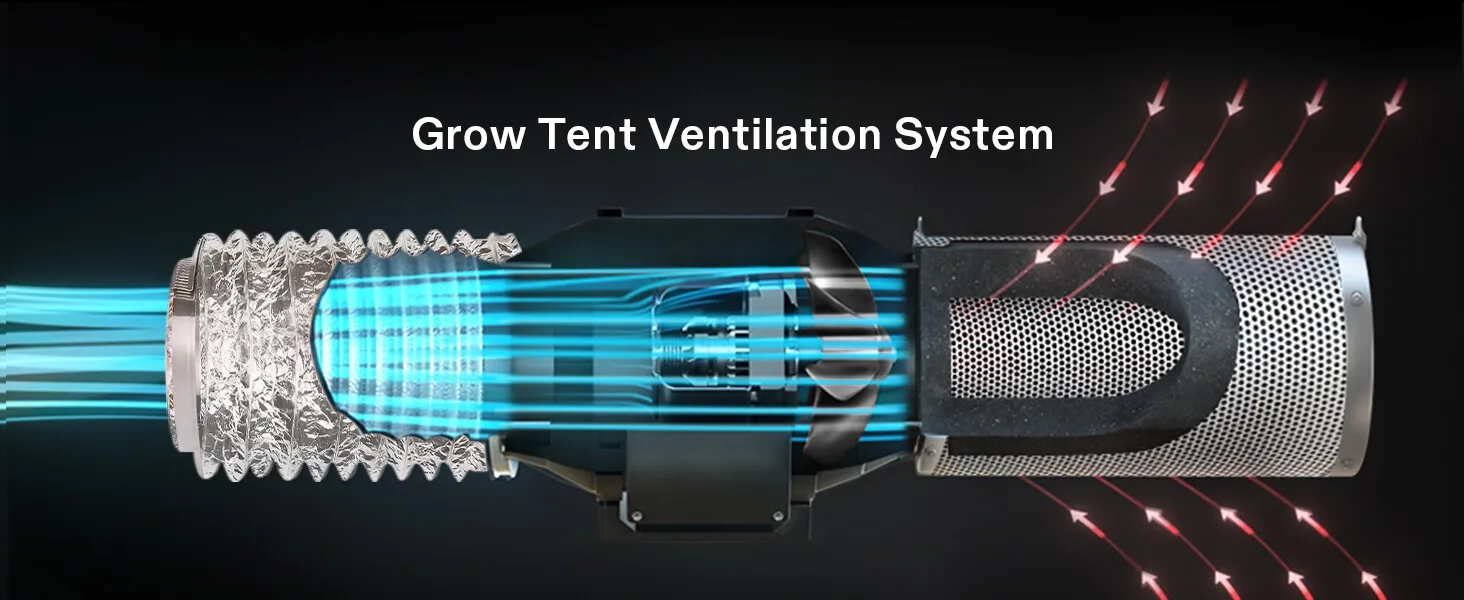

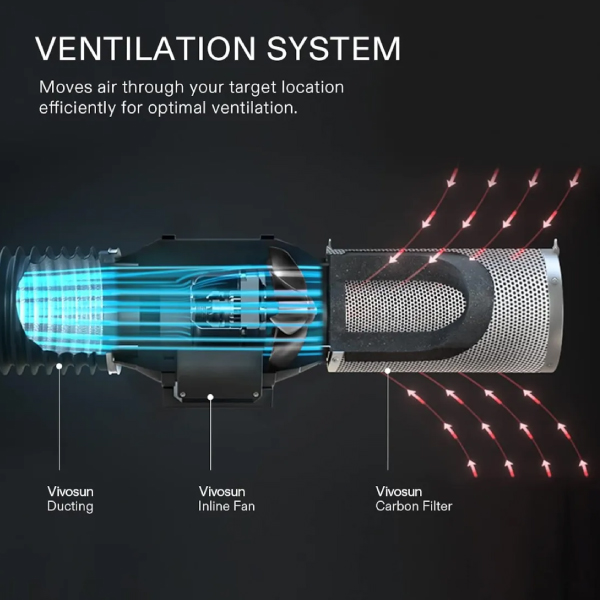

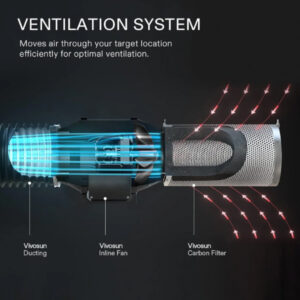

Designed for grow tents, indoor gardens, and hydroponic setups. Connect the carbon filter to the fan inlet with the ducting and clamps, and hang the filter using the included rope hangers. Mount the fan with its mounting plate or hang it from support bars. Set fan speed and on/off cycles with the E12 controller. For remote control through the VIVOSUN App, upgrade to the GrowHub E42A.
Technical Specifications
| Specification | Details |
|---|---|
| SKU | SG-S1882 |
| Brand | Vivosun |
| Product Name | VIVOSUN AeroZesh S6 Kit with E12 Controller |
| Model | AeroZesh S6 |
| Duct Size | 6-inch (150 mm) |
| Maximum Airflow | 688 m³/h (405 CFM) |
| Fan Speed | Up to 3100 RPM |
| Noise Level | 45 dBA |

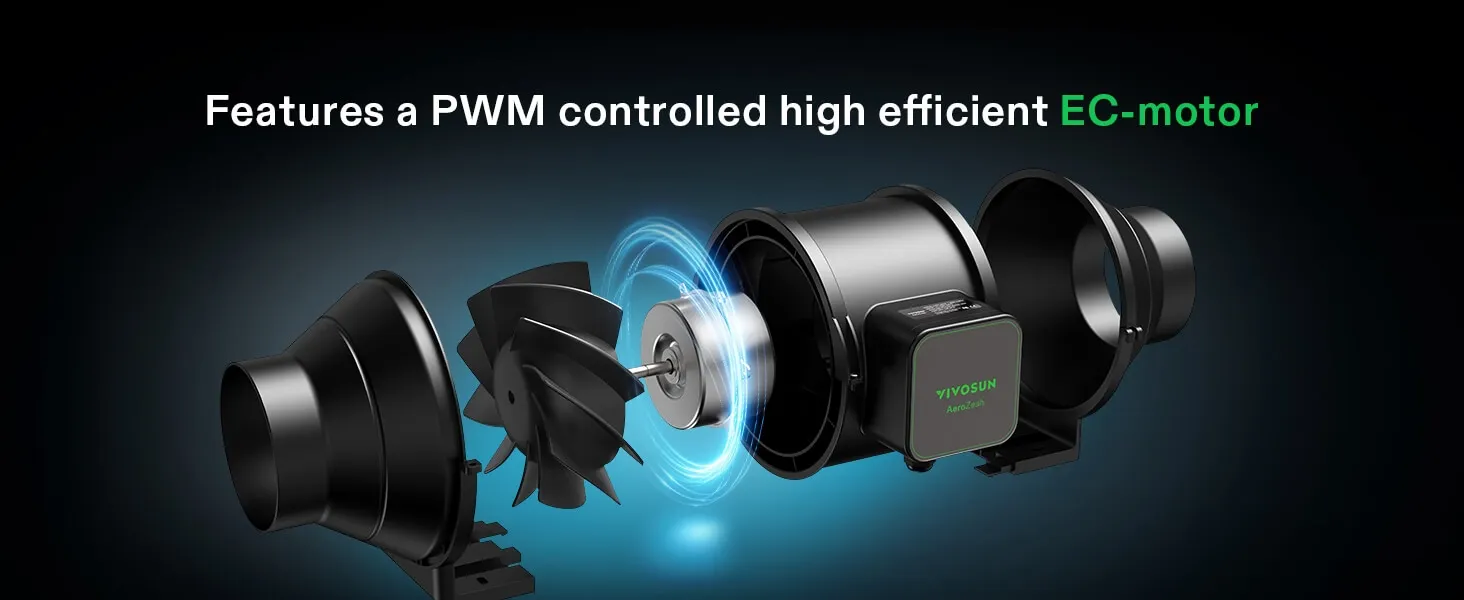

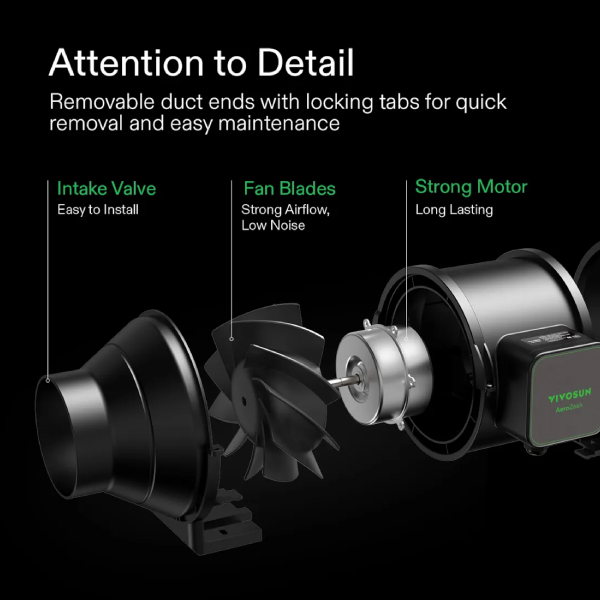

| Motor | PWM-controlled EC motor, mixed-flow design |
| Power | 35 W |
| Input Voltage | 110–240V, 50/60 Hz |
| IP Rating | IP44 |
| Fan Dimensions | 31.5 × 24.9 × 21.3 cm |
| Fan Power Cord Length | 1.8 m |
| Cord Length to Controller | 3 m |
| Controller | E12 wired speed controller |
| App Control | Upgrade to GrowHub E42A |

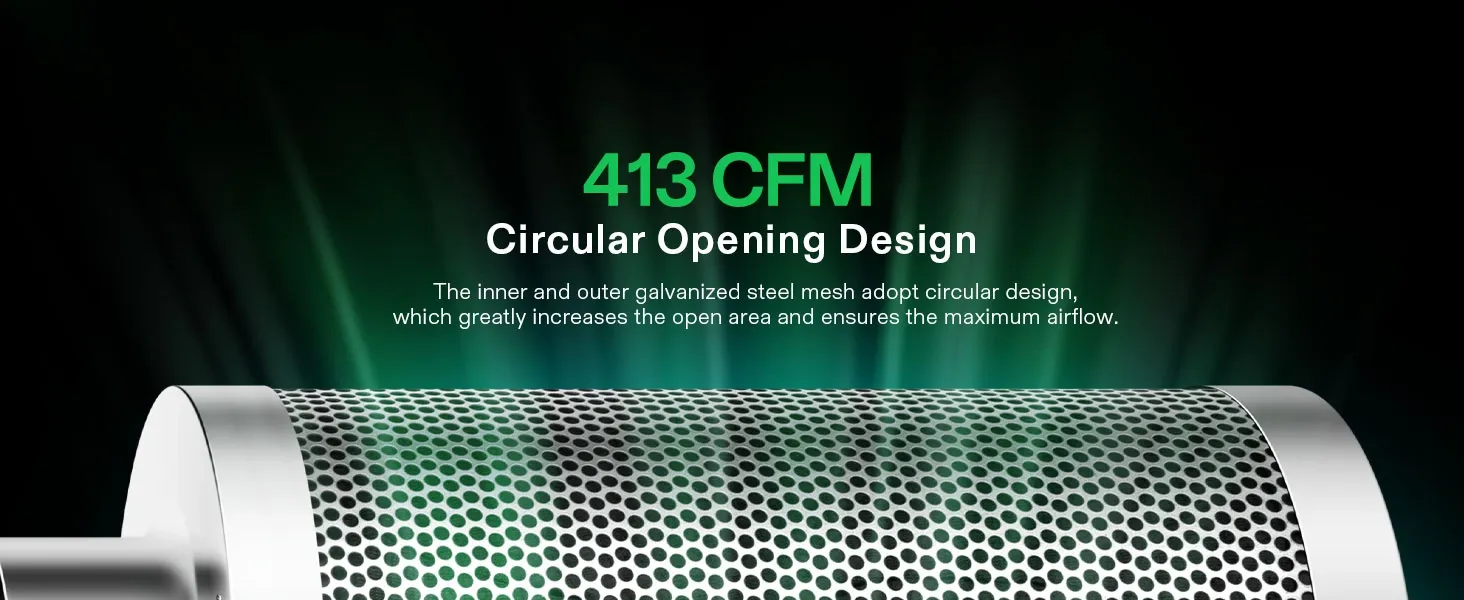

| Carbon Filter | RC 412, 1200+ IAV |
| Carbon Filter Material | Aluminium |
| Carbon Filter Dimensions | 39.9 × 22.6 × 22.6 cm |
| Ducting | 6-inch (150 mm) × 2.44 m |
| Clamps | 2 × stainless steel |
| Rope Hangers | 4 |
| Material | Plastic (PP) |
| Warranty | 1-year limited warranty |
