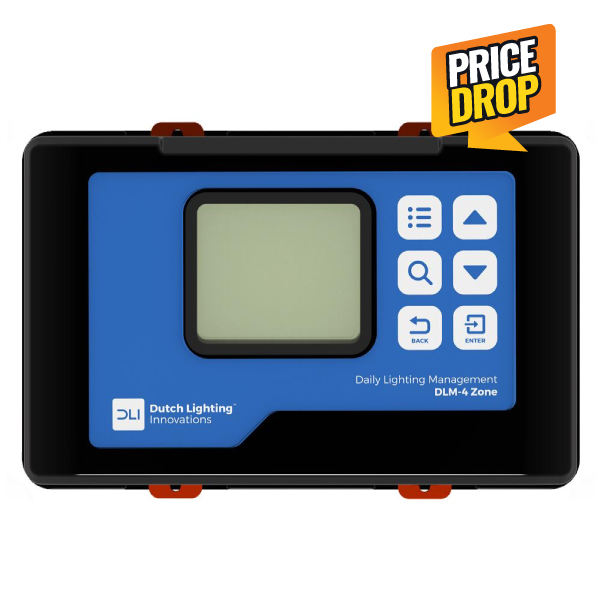

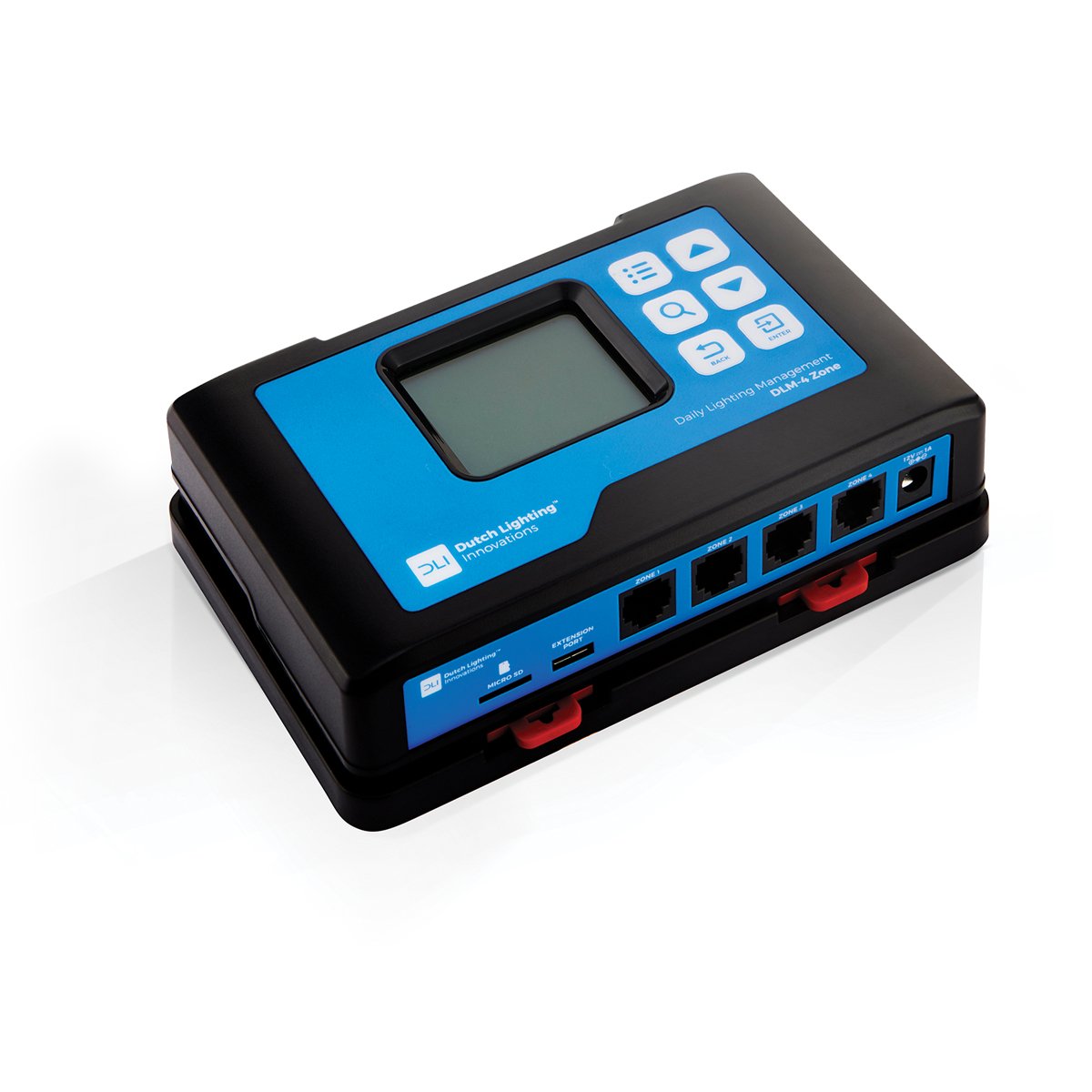

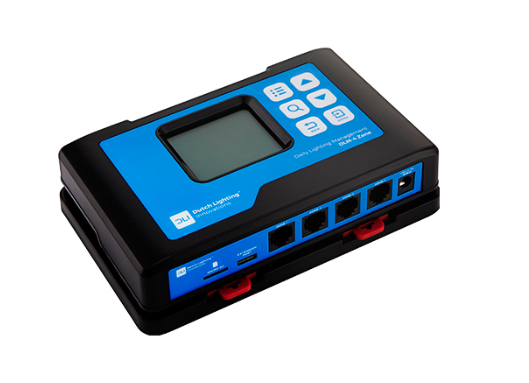

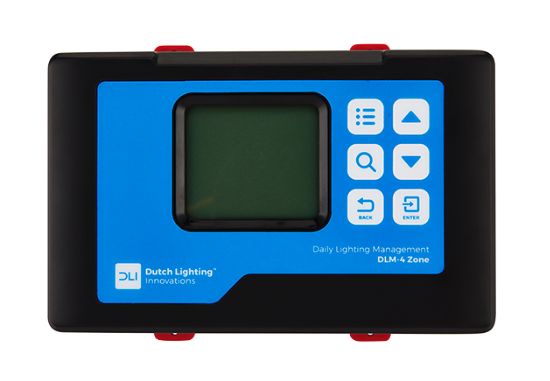

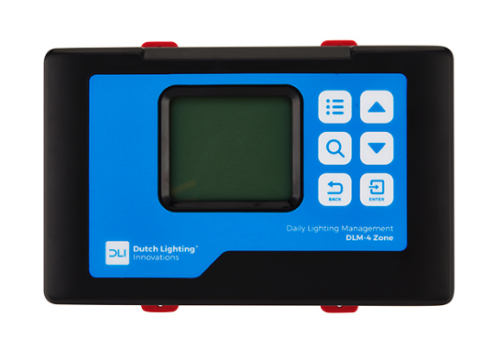

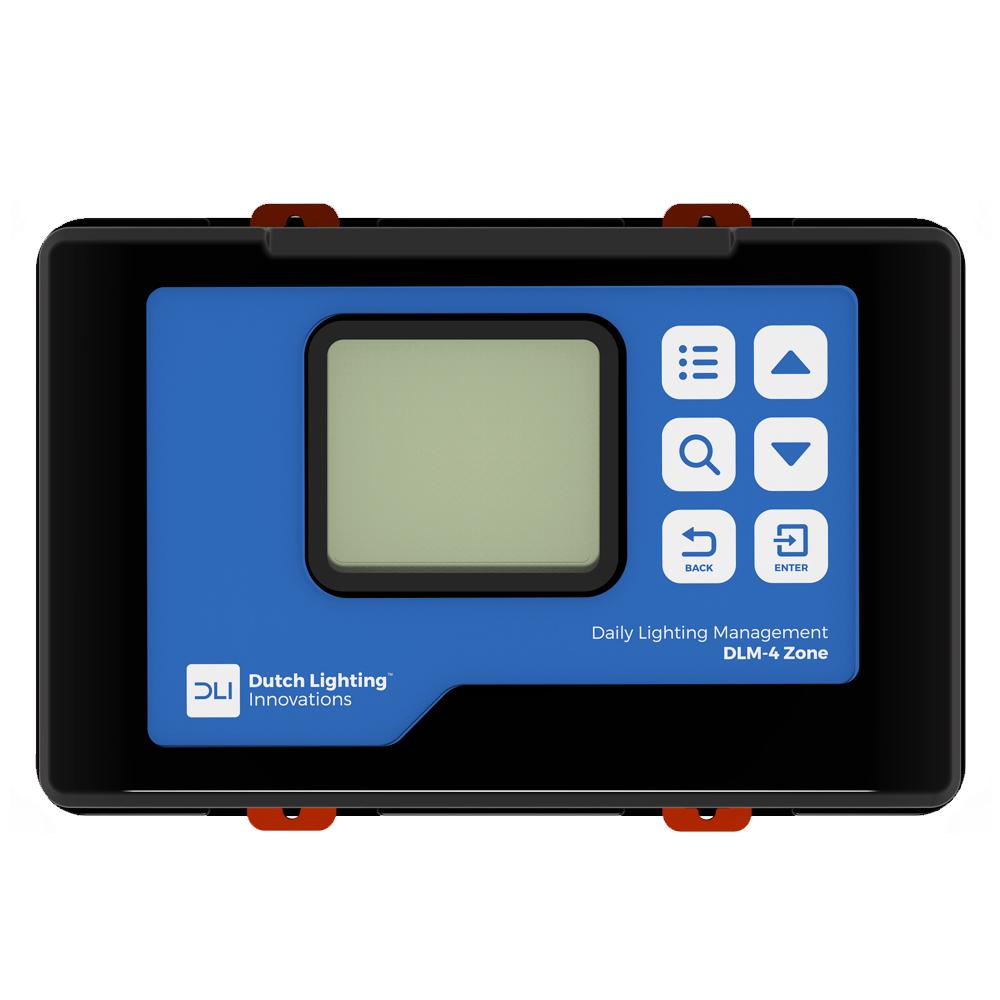

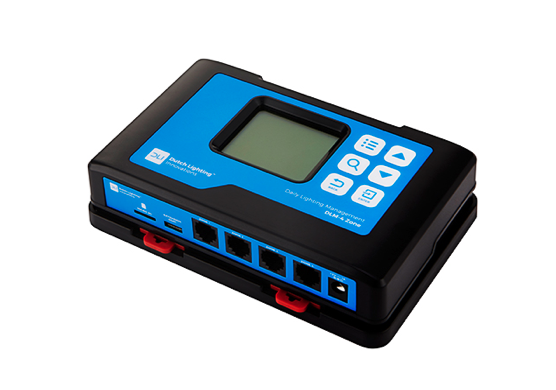

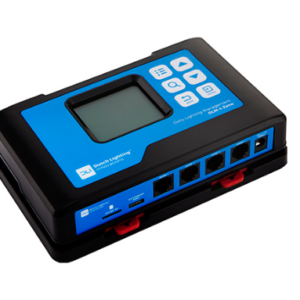

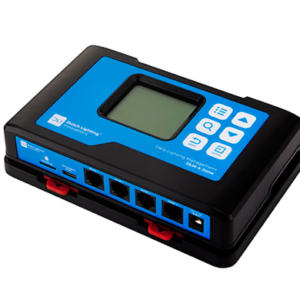

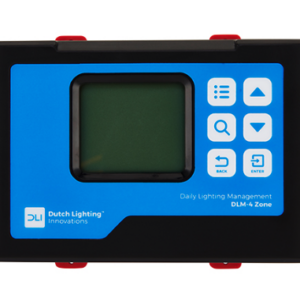

DLI DLM 4 ZONE CONTROLLER – Multi-Zone Lighting Automation for Commercial Grow Environments
The DLI DLM-4 Zone Controller is a powerful lighting management system designed to automate and optimize your Dutch Lighting Innovations setup. Capable of controlling up to 1020 fixtures across four independent zones, this controller enables precise scheduling, temperature-based dimming, and error logging for large-scale horticultural operations. Whether you’re managing a single grow room or a multi-zone facility, the DLM-4 delivers unmatched control and reliability.
Key Features
- Controls up to 4 zones, each with 255 fixtures and 1 temperature sensor
- Total capacity: 1020 fixtures and 4 sensors
- Digital timeclock for automated ON/OFF scheduling
- Temperature-based dimming or shutoff per zone
- Compatible with all DLI fixtures
- Error logging for diagnostics and system monitoring
- DIN-style mounting bracket for easy wall installation

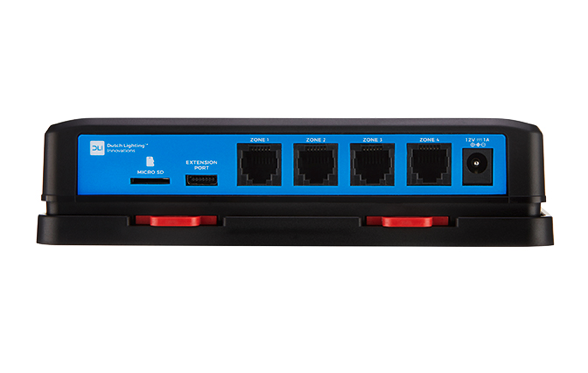

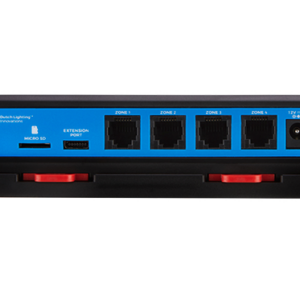

- Includes 4ft and 16ft RJ12 cables (longer lengths available separately)
Application Notes
- Ideal for commercial grow facilities with multiple lighting zones
- Use with DLI HPS, CMH, and LED fixtures for full-spectrum control
- Each zone can be configured independently for temperature and timing
- Ensure fixtures are set to “External Control” mode before connecting
| Metric | Value |
|---|---|
| SKU | SG-S0080 |
| Brand | DLI (Dutch Lighting Innovations) |
| Product Name | DLM 4 Zone Controller |
| Zones | 4 independent zones |
| Fixture Capacity | 255 per zone (1020 total) |
| Sensor Capacity | 1 per zone (4 total) |
| Control Type | Digital timeclock + temperature-based dimming |
| Compatibility | All DLI fixtures |
| Installation | DIN bracket + RJ12 cables |
| Diagnostics | Error logging included |
