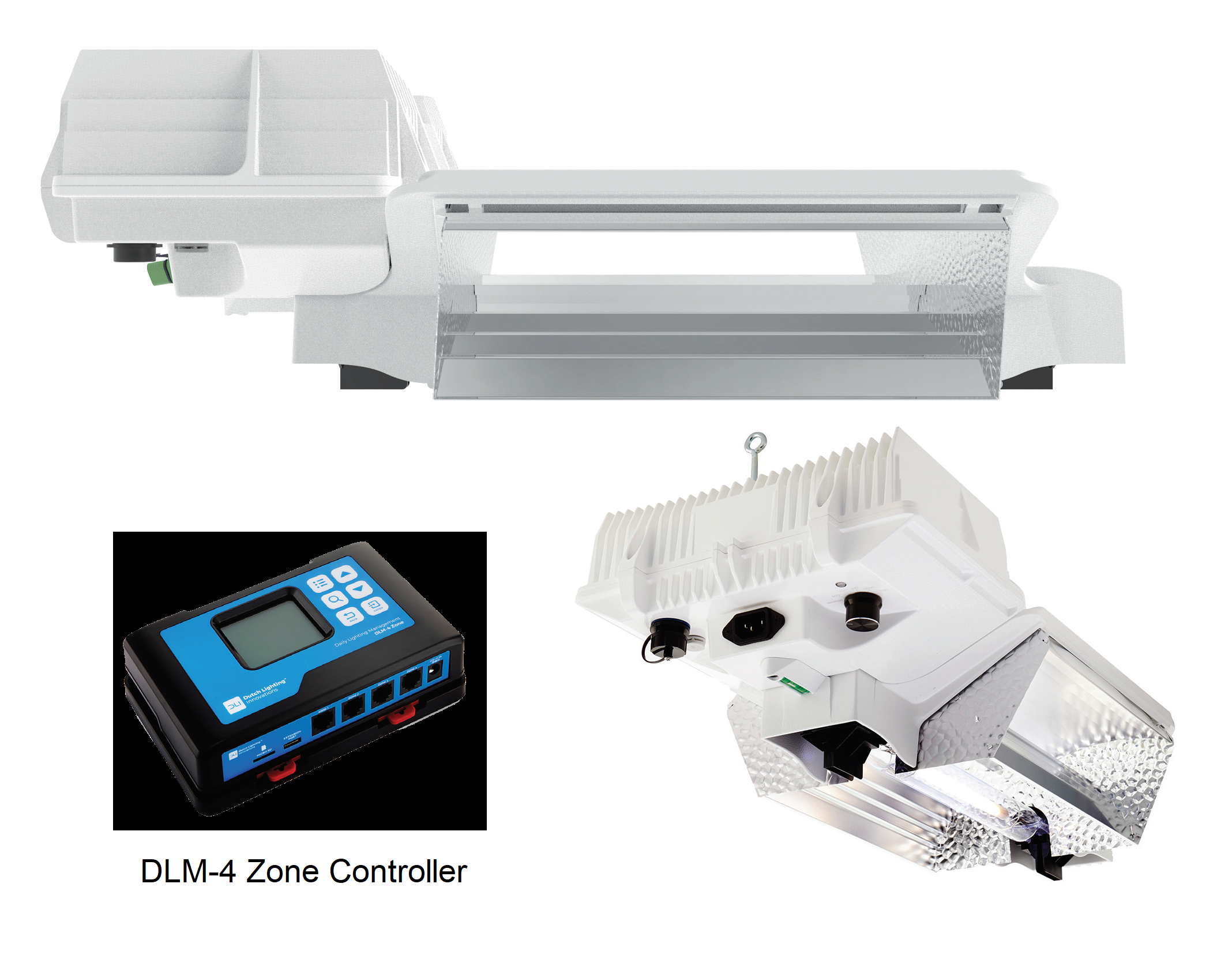

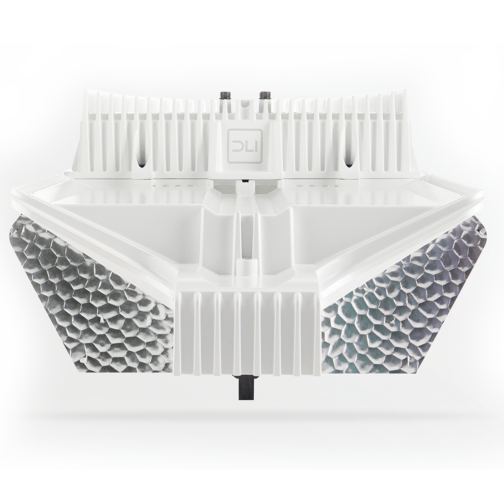

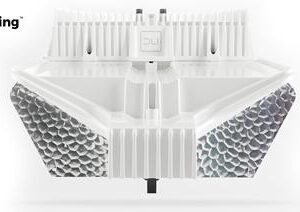

DLI JOULE-SERIES 1000W DE HPS FIXTURE – Precision-Engineered High-Output Grow Light with Advanced Reflector
The DLI Joule-Series 1000W DE HPS Fixture from Dutch Lighting Innovations is a commercial-grade lighting solution built for serious growers. Engineered with over a decade of horticultural research, this fixture features a proprietary open reflector system that delivers exceptional PAR uniformity and minimal canopy hotspots. With dimmable output, integrated diagnostics, and plug-and-play controller compatibility, it’s designed to meet the demands of high-performance flower production in low-ceiling environments.
Key Features
- 1000W Double-Ended High Pressure Sodium (DE HPS) fixture
- Extra low-profile housing – ideal for low-clearance grow rooms
- Advanced heatsink for improved driver efficiency
- LED status and error diagnostics indicator
- Manual dim switch: 600W / 750W / 825W / 1000W / 1150W
- Controller dimming range: 600W to 1150W

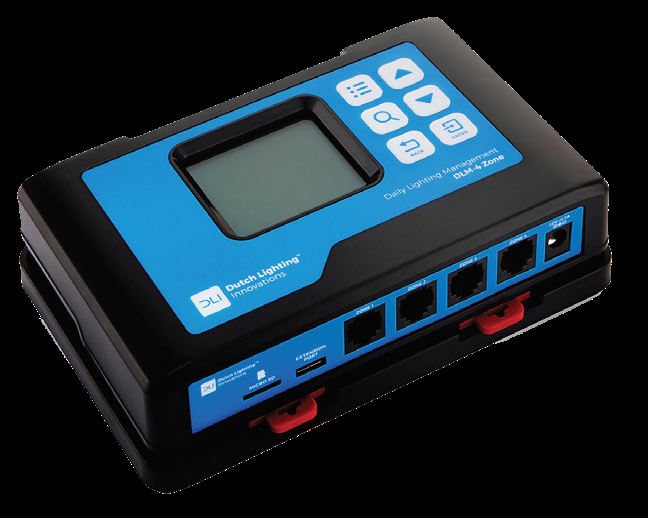

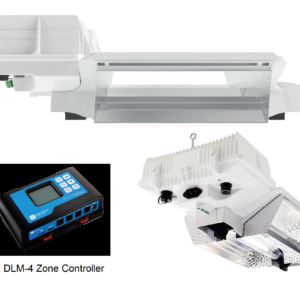

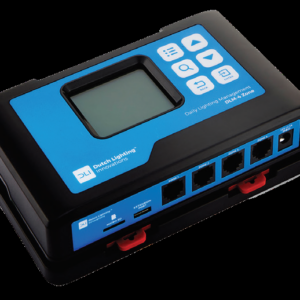

- IP65-rated controller connection – compatible with DLM-Series
- Gore-Tex ventilation plug for internal pressure regulation
- Built-in spirit level for precise horizontal alignment

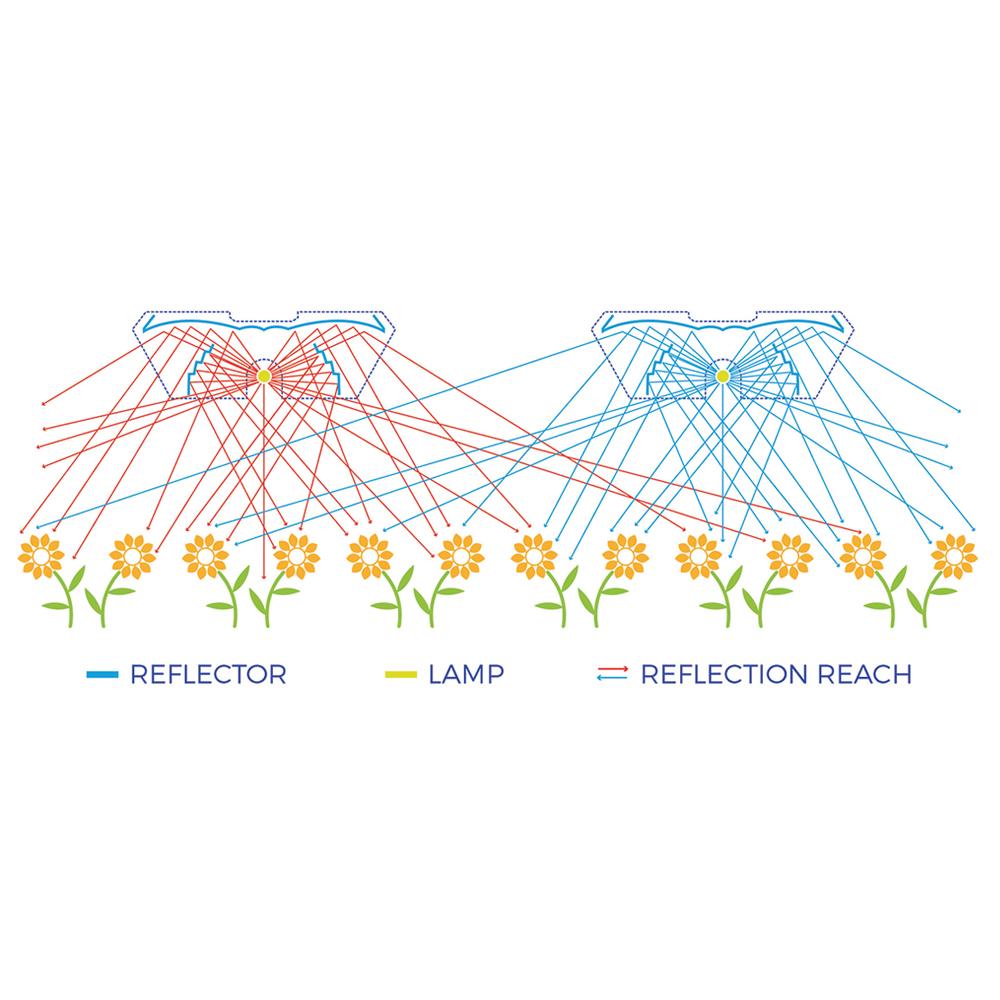

- Open reflector with >95% hemispherical reflectance across 400–700nm
- Vacuum-coated with 99.99% pure aluminium + dual oxide layer for enhanced durability
Technical Specifications
- Input Voltage: 120–240V ±10%
- Rated Power: 1060W
- Frequency: 50/60 Hz
- Typical Current: 4.5A @ 240V / 1000W
- Max Current: 9.5A @ 120V / 1150W
- Inrush Current: ≤ 40A
- Power Factor: ≥ 0.98
- Dimensions: 571 × 284 × 178 mm (22.5 × 11.2 × 7.0 in)
- Weight: 5.8 kg / 12.8 lbs
| Metric | Value |
|---|---|
| SKU | SG-S0082 |
| Brand | DLI (Dutch Lighting Innovations) |
| Product Name | Joule-Series 1000W DE HPS Fixture |
| Technology | Double-Ended HPS |
| Dimming Range | 600W–1150W |
| Reflector Type | Open, high-purity aluminium |
| Controller Compatibility | DLM-Series (IP65) |
| Application | Indoor horticulture – flowering |
