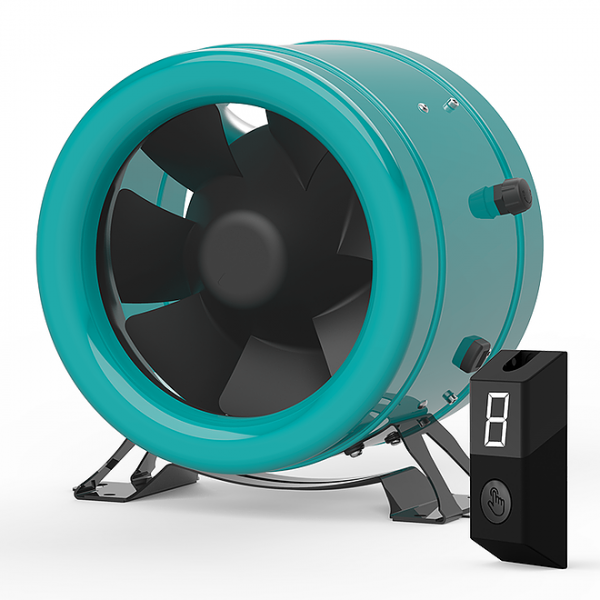

SIGILVENTUS EC Mixed Flow Inline Fan 200mm
Built for high-performance airflow and energy efficiency, the SIGILVENTUS EC Mixed Flow Inline Fan 200mm features a jet-engine blade design and brushless EC motor housed in a low-profile steel casing. Ideal for grow rooms, industrial cooling, and smart ventilation systems, this fan delivers powerful circulation with whisper-quiet operation.
High-Efficiency EC Motor
- Multiphase brushless DC motor with smooth, vibration-free performance
- High static pressure rating with low power consumption
- Operates quietly at just 61.6 dBA
- Max speed: 3800 RPM
Flexible Speed Control
- Includes 8-speed PWM controller for manual adjustment
- Supports optional wireless and smart controllers (sold separately)
- Compatible with PWM, 0–10V, potentiometer, and tachometer signals
Versatile Applications
- Hydroponics, poultry ventilation, vertical farming
- Server rooms, telecom stations, AV equipment
- Bathrooms, attics, BBQ/hotpot exhaust systems
- UVC sterilization and odour control systems
Installation & Maintenance
- Low-profile steel housing for compact duct setups
- Detachable fast clamp recommended for hard/PVC ducts
- Easy access for cleaning and servicing
| Specification | Details |
|---|---|
| SKU | SG-S0591 |
| Brand | SIGILVENTUS |
| Model | SE-A200 |
| Fan Size | 200mm (8″) |
| Airflow | 710 CFM / 1205 m³/h |
| Speed | Up to 3800 RPM |
| Noise Level | 61.6 dBA |
| Power | 75W |
| Voltage | 110–120V / 220–240V |
| Frequency | 50Hz / 60Hz |
| Motor Type | Brushless EC motor |
| Housing | Steel |
| Weight | 2.5 kg |
| IP Rating | IPX4 |
| Included | 8-speed controller |
| Optional Accessories | Wireless/smart controller, fast clamp |
| Product Name | SIGILVENTUS EC MIXED FLOW INLINE FAN 200MM |
